High-strength steel frame greenhouse with thermal and sound insulation designed for modular assembly in agricultural applications

  • 1
  • 2
  • 3

Brand Name : Shunyao Supply Chain

Place of Origin : Chengdu , China

MOQ : 100 PCS

Price : $40-200

Payment Terms : T/T

Supply Ability : Excellent

Delivery Time : 5-15 days

Packaging Details : Bundles

Connection : Bolts

Customization : Customized Logo: Min. Order: 5000

Application : Industrial/Commercial

Product Insulation : Thermal and Sound Insulation

Fire Resistance : High

Usage : Commercial, industrial, residential buildings

Crane : Without Or From 1Ton ~300Ton

Product : Steel Structure

Environmentalimpact : Recyclable and eco-friendly materials

Connection Method : Bolting

Transportation : Containerized

Material : High-strength steel

Warranty : 5 Years

Wall Cladding : Sanwich Panel, single sheet

Main Structure : Galvanized Light Steel Frames

Contact Now

High-Strength Arched Steel Frame Greenhouse Structure
This high-strength arched steel frame greenhouse features a structural design combining hot-dip galvanized steel pipe arches with reinforced cross braces. Supported by brick or concrete foundations, it offers high overall rigidity and excellent wind and snow resistance.
The arched shape ensures optimal light transmission and air circulation. Available in single-layer, double-layer, and four-layer configurations to meet specific crop requirements. The greenhouse can be equipped with supporting facilities including ventilation windows, sunshade nets, drip irrigation, and temperature & humidity control systems.
With modular assembly and straightforward installation, it is ideal for vegetable seedling raising, flower cultivation, and large-scale planting. Offering long service life and minimal maintenance costs, this structure provides an economical and durable solution for agricultural production and greenhouse projects.
Technical Specifications
Category Parameter Specification / Range Description
Structure Type Greenhouse Type Arch Steel Greenhouse Single-span or multi-span
Structural Design Hot-dip galvanized steel arches + reinforced purlins High overall rigidity
Dimensions Span Width 6 m / 8 m / 10 m / 12 m 8–10 m most common
Length 30–100 m (customizable) Modular extension
Eave Height 1.5–2.0 m Affects ventilation and operation
Ridge Height 3.5–5.5 m Depends on span
Steel Configuration Main Arch Pipe Ø25–Ø32 mm Thickness 1.2–2.0 mm
Reinforcement Pipe Ø20–Ø25 mm Wind & snow resistance
Columns Ø32–Ø48 mm Mainly for multi-span
Surface Treatment Hot-dip galvanized Anti-corrosion ≥15 years
Foundation Foundation Type Brick base / Concrete footing Adaptable to soil conditions
Embedment Depth 300–500 mm Wind uplift resistance
Covering System Covering Type Single layer / Double layer / Four-layer film Optional thermal quilt
Film Thickness 0.12–0.20 mm PO / PE / EVA
Environmental Performance Wind Resistance ≥ Grade 8–10 wind Depends on reinforcement
Snow Load Capacity 0.25–0.45 kN/m² Denser arch spacing optional
Optional Systems Ventilation Roof vent / Side roll-up Manual or motorized
Shading System Internal / External shading Black net or aluminum foil
Irrigation Drip irrigation / Micro-spray Automation optional
Control System Temperature & humidity control Optional
Installation & Service Installation Method Modular assembly Fast installation
Service Life 15–20 years Low maintenance cost
Applications Usage Vegetable seedlings, flowers, large-scale cultivation Cost-effective solution

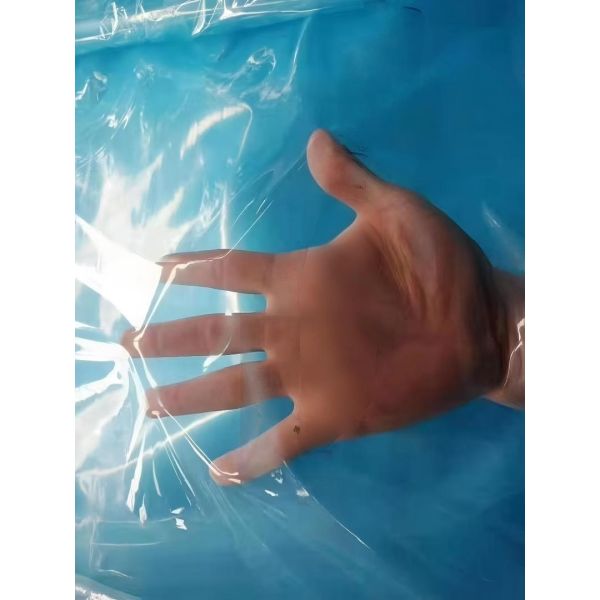

Thermal Insulation Materials
High-strength steel frame greenhouse with thermal and sound insulation designed for modular assembly in agricultural applications High-strength steel frame greenhouse with thermal and sound insulation designed for modular assembly in agricultural applications High-strength steel frame greenhouse with thermal and sound insulation designed for modular assembly in agricultural applications High-strength steel frame greenhouse with thermal and sound insulation designed for modular assembly in agricultural applications

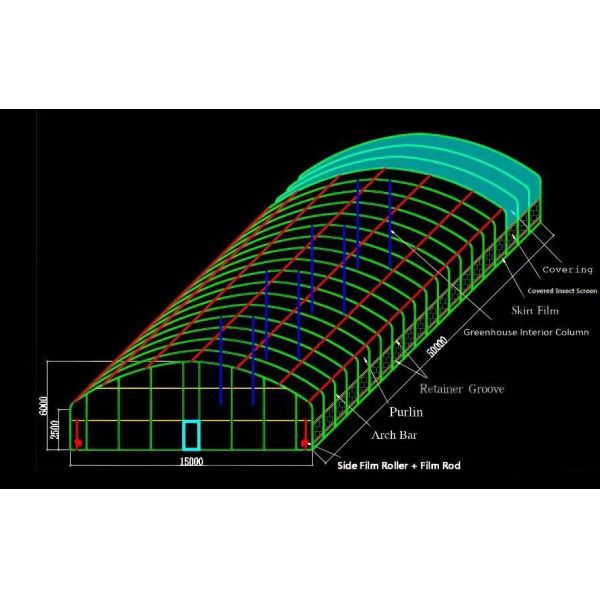

Design Drawing
High-strength steel frame greenhouse with thermal and sound insulation designed for modular assembly in agricultural applications
